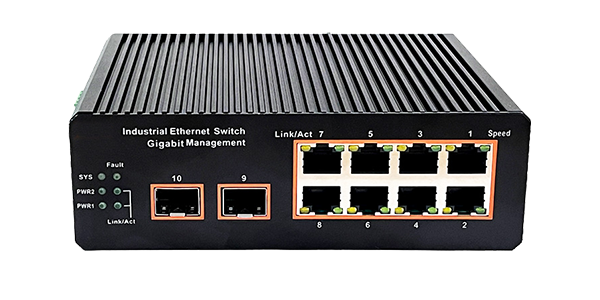

ETH Switch & Industrial Switch

Key features:

Installation Method: DIN Rail Mount

Protection Level: IP30, reduces dust impact

Industrial-grade operating temperature: -40°C to 75°C

8K MAC addresses; static MAC addresses, MAC address filtering, dynamic MAC binding for address table management

MAC address auto-learning, auto-aging, and aging time settings

IEEE 802.1Q VLAN, flexible VLAN segmentation based on user needs(for managed switch)

Voice VLAN for QoS configuration, prioritizing voice data flow and ensuring call quality(for managed switch)

QoS: Supports port-based, 802.1P-based, and DSCP-based priority modes, with queue scheduling algorithms including Equal, SP, WRR, SP+WRR

ACL: Filtering of data packets through configurable matching rules, actions, and time permissions, providing flexible security access control policies

IGMP V1/V2 multicast protocol, supports IGMP Snooping to meet HD video surveillance and video conferencing needs

Multicast VLAN and multicast filtering for efficient data transmission, bandwidth saving, and reduced network load

802.1X authentication for LAN computer access, with port authorization control based on authentication results

STP/RSTP/MSTP spanning tree protocols to eliminate Layer 2 loops and enable link redundancy

ERPS rapid ring protocol with a recovery time of 20ms (currently supports single ring only)

Ingress/egress bandwidth control based on port

Static and dynamic link aggregation for increased link bandwidth, load balancing, link redundancy, and improved link reliability

Web management, CLI (Console, Telnet), SNMP (V1/V2/V3) for diverse management options

Secure management with HTTPS, SSL V3, TLSV1, SSHV1/V2 encryption

RMON, system logs, and port traffic statistics for network optimization and improvements

Cable detection, Ping, and Tracert tests to easily analyze network faults

LLDP for network management systems to query and assess link communication status

CPU monitoring, memory monitoring, Ping, Tracert tests, and cable detection

Technical Specifications:

Protocol Standards

IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3af, 802.3at

Switch Performance

Store-and-forward support; MAC address table depth: 8K

DIP Switch

Not defined yet, customizable options available

Structure

IP30 protection level; DIN rail/wall mountable

Net Weight/Gross Weight

≤1kg / ≤1.4kg

Switching Capacity

20Gbps

Forwarding Rate

14.88Mpps

Buffer

4.1Mb

Operating Temperature

-40°C to 75°C

Storage Temperature

-40°C to 85°C

Humidity

Operating humidity: 10%RH to 90%RH, non-condensing; Storage humidity: 5%RH to 90%RH, non-condensing

Packaging Accessories

1 SR-SHG3210FPI industrial-grade switch, warranty card, user manual

Software Parameters:

L2 Switching Features

8K MAC address table, 10K jumbo frames, Flow control (802.3x, Backpressure), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Edge port, BPDU filter, ERPS, Self-loop detection, Link aggregation (Static, LACP), Traffic load balancing.

L3 Switching Features

IPv4/IPv6 Static routing, ARP (Static ARP).

VLAN

Supports 4094 VLANs, IEEE 802.1Q VLAN, Protocol-based VLAN, MAC-based VLAN, Surveillance VLAN, Voice VLAN, QinQ (IEEE 802.1ad), GARP VLAN Registration Protocol (GVRP).

Multicast

Supports 500 multicast groups, IGMP (v1/v2/v3), IGMP Active Query, MLD Listening, IPv4 Multicast VLAN Registration (MVR).

Quality of Service (QoS)

8 priority queues/ports, Queue scheduling (WRR, WFQ, Strict priority, Hybrid WRR+SP or WFQ+SP), Port-based rate limiting, Trusted QoS.

Access Control List (ACL)

L2/L3/L4 ACL types (MAC, IPv4, IPv6).

Security

AAA authentication, 802.1x, TACACS+, SSLv2/SSLv3/TLSv1, CLI SSH v1/v2, Storm control, BPDU protection, Port isolation, DHCP Snooping, Dynamic ARP inspection, DoS prevention, IP/MAC/Port Binding (IMPB).

IPv6 Host

Auto-configuration, Static IPv6 address, IPv6 Neighbor Discovery (ND), Duplicate Address Detection, ICMPv6.

IPv6 Applications

Supports HTTP/HTTPS, Remote Network, SSH, SNMP, TFTP, System Logs, PING, DHCPv6.

Management

CLI, HTTP, HTTPS, SNMP management (V1/V2/V3), File management (Firmware upgrade/backup), Port management, DHCP client, RMON, IEEE (802.3az).

Discovery

IEEE 802.1AB Link Layer Discovery Protocol (LLDP), ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED).

Diagnostics

System logs, CPU/memory/port/utilization diagnostics, Port diagnostic cable test, Fiber module status, Ping/Traceroute, UDLD.

MIB

RFC1213 MIBII, RFC2819 RMON I, SNMPv3-MIB, RFC1215 trap, RFC1493 Bridge MIB, RFC2737, RFC3635, RFC2863 Interface group, RFC2674 Bridge MIB Extensions.
