CALL RECORDING CARDS & SOLUTION

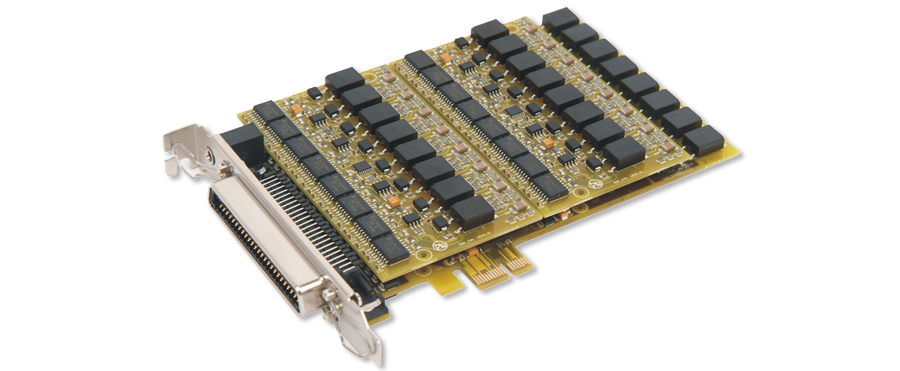

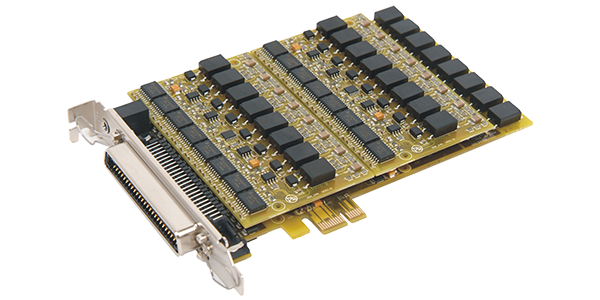

ANALOG RECORDING BOARD

Up to 500 Sessions per System, Monitor, Analyze and Record Session over IP lines

Call Recording Overview

Analog Recording Tapping Card

E1/T1 Passive Tapping Card

VoIP Call Recording SDK

Digital PBX Tapping Card

Analog Recording Server

E1/T1 Recording Server

Radar Data Tapping Card

Radio Recording SDK

PCM32 Tapping Card

HomeAnalog Recording Tapping Card

CPU Encoding
Half-Length Size
Pure SDK Install
VoIP Recording

Widest Product Range for Passive and Active Call Recording

For two decades Synway has consolidated its position as a leading International call recording cards and software. Because Synway's products and services react rapidly to unpredictable business and industry environments, they provide continual advantages to small, medium and large scaled developers and end users. Synway has widest product range for call recording applications, including passively tapping into analog lines, E1/T1 lines, digital stations, IP networks, wireless radio, radar lines.

Unparalleled Commercial Values for Developers and End Users Globally

Based upon its well established products and services for call recording application providers, Synway now is progressing into a new era of growth. To cement its brand as a world-class vendor of call recording hardware, Synway will help clients overcome new challenges in unexpected economic situations and cooperate with more partners, especially public relations partners in the next stage of growth.

Unparalleled Commercial Values for Developers and End Users Globally

Based upon its well established products and services for call recording application providers, Synway now is progressing into a new era of growth. To cement its brand as a world-class vendor of call recording hardware, Synway will help clients overcome new challenges in unexpected economic situations and cooperate with more partners, especially public relations partners in the next stage of growth.

Contact Synway for This Product

Get A Free Sample
Go Ahead!
Products Inquiry
Know more about it
Sales Consultancy
Be a Business Partner?
Specialist Channel
Specialist Support

Features

Monitor, Analyze and Record Session Over IP lines
Process Up to 500 IP Sessions in A Single System
Support Multiple Recording Formats, Start/Stop Modes
Supports simultaneous monitoring of a variety of protocols on a same line
Support of D-channel events parsing
Support of telephone administration
Support of session administration
Support of RTP administration
Supports configuration of monitoring protocols
Supports a variety of monitoring modes
Supports a variety of recording formats
Supports a variety of RTP streaming formats
Multiple recording methods, including recording of incoming calls, recording of outgoing calls, mix recording of incoming and outgoing calls, are optional
Support volume adjustment
Support DTMF parsing

Capabilities

Flexible Ways to Monitor Protocols and Ports
Multiple Monitoring Modes
Abundant Event Types
Unified D-channel Event IDs
Distributed Architecture
Various Encoding Formats Supported
Supports Standard WAV File
Various RTP Decoding Formats Supported
Supports Memory Recording
Flexible Authorization Strategy
Authorization Code Identification Circuit
Synway’s Unified SynCTI Driver Development Platform
Both file recording and memory recording supported
Supports multiple ways to stop recording
More than one format optional to save the recording file

Core Specifications

Audio Specifications	CODEC: CCITT A/µ-Law 64kbps, IMA ADPCM 32kbps Output power: ≥50mW Distortion: ≤2% Frequency response: 300-3400Hz(±3dB) Signal-to-noise ratio ≥38dB Echo suppression: ≥40dB
Impedance	Input impedance: ≥1MΩ/500V DC; ≥10kΩ/1000V AC Insulation resistance for PC isolation from telephone line: ≥2MΩ/500V DC
Sampling Rate	8k Hz
Maximum System Capacity	Up to 10 boards concurrently per system; up to 16 channels per board
Input/output Interface	Headset jack: One φ3.5 stereo jack Telephone line jack: Eight 4-pin RJ11 jacks; DB44
Power Requirements	IP v4, UDP/TCP, PPPoE, DHCP+5V DC: 600mA -12V DC: 80mA +12V DC: 300mA Maximum power consumption:≤12WHTTP, Telnet
Safety	Lightning Resistance: Level 4 Certification: FCC; CE; CCC
Dimensions	Board: 230×163mm2 (excluding handles) Rear connection panel: 230×82mm2 (excluding handles)
Weight	Board: ≈ 500g (including 8 dual channel modules)
Environment	Operating temperature: 0℃—55℃ Storage temperature: -20℃—85℃ Humidity: 8%— 90% non-condensing Storage humidity: 8%—90% non-condensing
