Main Functions

IMSI and IMEI Catcher, Add-on cellular locator and cellular firewall

Applications

law enforcement agencies, search and rescue, correctional facility, prison, police and counter terrorism, border security patrol, emergency service and telecommunication

Base station

Simulates GSM/ UMTS/ LTE/5G NR base stations simultaneously. The supported network protocols can be customized.

Bands

Support 2G, 3G, 4G, 5G, the frequency band include GSM/UMTS/LTE

 5G:   N1：uplink： 1920-1980MHz；downlink：2110-2170MHz

  N5：uplink： 824-849MHz；downlink：869-894MHz

  N8：uplink： 880-915MHz；downlink：925-960MHz

N28：uplink：703-748MHz；downlink：758-803MHz

  N41：2496-2690MHz

  N77/N8：3300-3600MHz

  N79： 4400-5000MHzz

  4G:   B1：uplink： 1920-1980MHz；downlink：2110-2170MHz

  B3：uplink： 1710-1785MHz；downlink：1805-1880MHz

  B5：uplink：824-849MHz；downlink：869-894MHz

  B8：uplink：880-915MHz；downlink：925-960MHz

  B34：2010-2025MHz

  B39：1880-1920MHz

B40：2300-2390MHz

  B41（38）：2496-2690MHz

3G：WCDMA：B1：uplink： 1920-1980MHz；downlink：2110-2170MHz

 CDMA：B5：uplink：824-849MHz；downlink：869-894MHz

2G：GSM900：uplink：890-915MHz；downlink：935-960MHz

 DCS1800：uplink：1710-1785MHz；downlink：1805-1880MHz

Notes: The number of supported bands will continue to be updated and can be customized according to clients' need.

Transmit Power

≤ 47 dBm (50 Watt), stepless adjustment

Sensitivity

≤ -110 dBm

Signal Coverage Radius

50-1000m (Typical / Ideal Environment): With distributed deployment, the coverage area can be expanded via indoor distributed antennas

Antenna Interface

N-Type

Software Features

• Data Export Format: Excel
• Multi-User Permissions: Not Supported
• Remote Management: Web
• Whitelist/Blacklist Capacity: Unlimited
• Capture Rate: 50 Entries/Sec
• Storage Capacity: 1 Million Records
• Control Platform: PC Terminal

  Electrical Parameters

• Input Voltage: AC 110-220V, DC Optional
• Power Consumption: based on function, usually less than 1,000Watt
• Battery Capacity: Optional or based on necessity
• Battery Life: based on necessity

  Physical Parameters

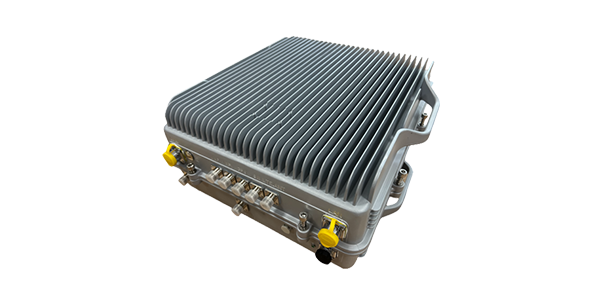

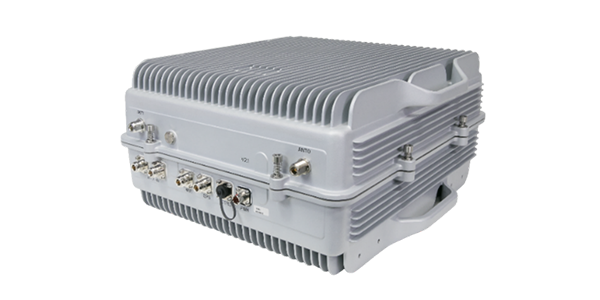

• Housing Material: ADC12 Die-Cast Part (Die-Cast Aluminum Alloy)
• Protection Class: IP67
• Dimensions (Length × Width × Height, mm): The dimensions are related to the number of supported frequency points and coverage range;
• Weight: custom-made by needs

  Environmental

• Operating Temperature Range: -40 – 55 °C
• Storage Temperature Range: -40 – 55 °C
• Humidity: 5% – 98% RH
• Shock Resistance Class: IEC

  Accessories List

• Signal Shielding Main Unit
• Main Unit Power Cable
• Main Unit Ethernet Cable
• Signal Shielding Front-End
• Beidou Antennas
• Ceiling-Mounted Antenna
• Installation Accessories (including feeder cables and hoop accessories)

Scan and set-up

Automatically provides users with the ideal parameter for the most effective attraction of mobile phone subscribers.

Detection

Alarm can be triggered upon the presence of a specific mobile phone.

IDs

Capture and record cellular identifiers (IMSI, IMEI), which are stored in database and analyzed.

   White list

Allows a predefined list of devices to work while denying service to all others.

Blacklist

Allows operation in a targeted mode where all phones are released but a predefined list of targets is held / denied.

Downgrade

Ability to downgrade target mobile phone from LTE or UMTS to GSM.

Warranty

3-Years, lifetime technical support for free
