    Audio VOIP MEDIA GATEWAY

    Audio Gateway

    SMG1000-D4AU

    4Ports Audio VoIP Media Gateway, Cost Effectively And Reliably Deliver Your Audio to VOIP

    Audio Gateway
    HomeAudio Gateway
    • 4 Ports Audio to SIP
    • Migrate to SIP
    • DSP Media Processing
    • Auto-Provision
    Maximize and Migrate Value of On-Site Audio To SIP

    Rich Customizable Features and Robust Telco' architecture

    Founded in 1995 in Hangzhou, SYNWAY is a leading global provider of IP Unified Communication products including VoIP Gateways, IP PBXs and SBCs, We have been delivering more agile, efficient and affordable communication solutions and unparalleled communication experiences to our customers with our reliable, innovative and future-proof products for years. Through our value- added distributors and resellers worldwide, now SYNWAY serves telecom operators, service providers, system integrators, enterprises, SMBs and OEM partners in over 100 countries.

    Rich Customizable Features and Robust Telco' architecture

    Founded in 1995 in Hangzhou, SYNWAY is a leading global provider of IP Unified Communication products including VoIP Gateways, IP PBXs and SBCs, We have been delivering more agile, efficient and affordable communication solutions and unparalleled communication experiences to our customers with our reliable, innovative and future-proof products for years. Through our value- added distributors and resellers worldwide, now SYNWAY serves telecom operators, service providers, system integrators, enterprises, SMBs and OEM partners in over 100 countries.

    Contact Synway for This Product
    Features

    l Capacity: Supports 4 pairs of unbalanced 6.35mm TS large two-core AU audio lines, accommodating multiple audio channels.

    l RTP Encoding: Supports various audio codecs including G711A, G711U, G729, G723, AMR, iLBC, ensuring efficient and compatible audio transmission.

    l High Reliability: Features a built-in watchdog process and hardware watchdog to maintain stability and reliability during extended operation.

    l Compatible Protocols: Supports SIP V1.0/2.0 and RFC3261 protocols for wide compatibility.

    Capabilities

    l WEB Configuration: Easily configurable through a user-friendly WEB interface.

    l Software Upgrades: Allows WEB-based user interface updates for gateway services, kernel, and firmware, keeping the device up to date.

    l Dual AC Power Supply: Supports dual AC power supplies for increased redundancy and stability.

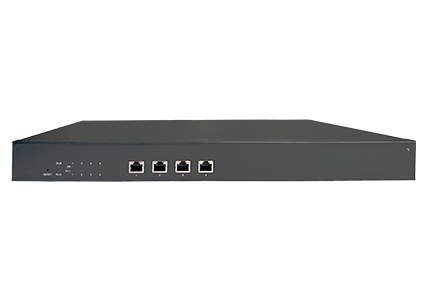

    l Network Interfaces: Equipped with 4 Gigabit Ethernet ports (1 WAN + 3 LAN) to meet high-speed network requirements.

    l Chassis Design: Features a 1U rack-mounted chassis design, saving space.
    Core Specifications

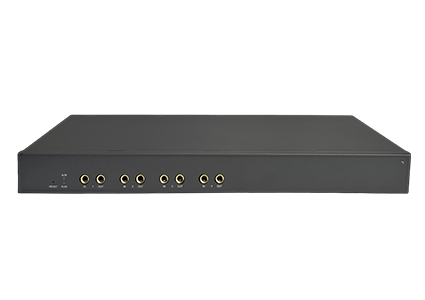

    AU Interface: 4 pairs of unbalanced 6.35mm TS large two-core connectors

    Debugging Interface: 1 Mini-USB

    Network Interfaces: 4 Gigabit Ethernet ports

    Reset to Factory Settings Button: Restores the device to factory default settings

    Indicators:

    RUN Light:



    Off indicates the system is not started; On indicates the system is starting; Flashing indicates the device is running normally.

    ALM Light:

    Off indicates the device is normal; On during startup indicates the device is normal; On during operation indicates an issue; Flashing indicates an abnormality.

    Other Specifications:

    Power Consumption: 12W

    Operating Temperature: 0～40 ℃

    Storage Temperature: -20~85 ℃

    Operating Humidity: 8％～90％ non-condensing

    Storage Humidity: 8％～90％ non-condensing

    Dimensions (mm): 440*267*44

    Weight: Approximately 3kg
    Resources

    1. Why Do You Choose Synway to Win in Competition?

      Fast Download

    2. Synway's Analog VoIP Media Gateway SMG1000-D4AU Datasheet

      Fast Download

    3. SMG1000 PPT Introduction With Unique Features and Functionalities

      Fast Download

    4. Synway's SMG1000 Series Complete Datasheet Catalog

      Fast Download
